| الاسم التجاري: | XWH |
| رقم الطراز: | DN-10، DN-16، DN-25، DN-35 |
| الـ MOQ: | 1 |
| السعر: | USD600-USD700 |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام |
| القدرة على التوريد: | 500 مجموعة / شهر |

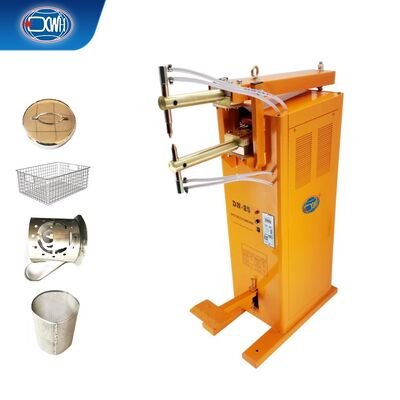

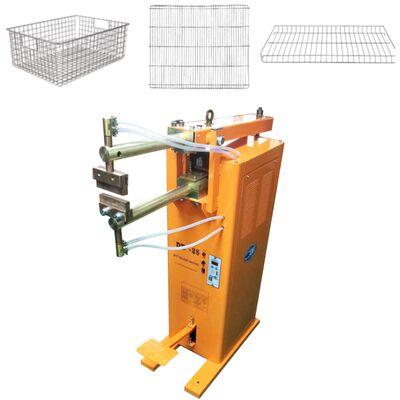

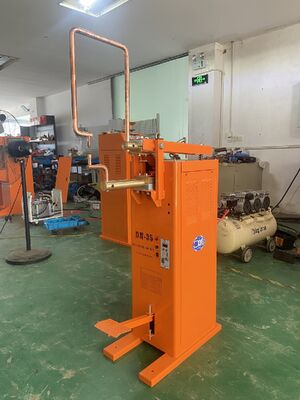

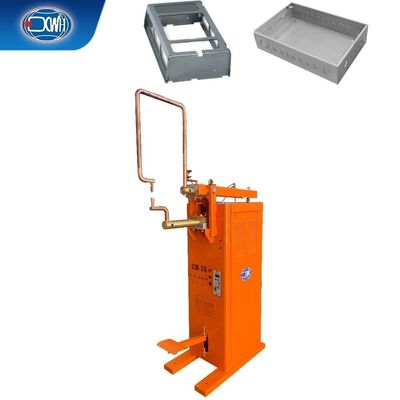

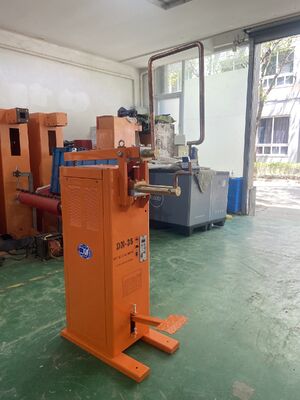

Adjustable Time Good Repeatability Easy Operation Pedal Type Spot Welding Machine
When standard welding machines cannot meet your unique welding shape requirements, this customized foot operated spot welding machine is the tool you need. We are well aware that sometimes it is a small welding joint that hinders efficiency. Therefore, we provide customized services for hetero welding joints made of chromium zirconium copper or tungsten materials to accurately match your product profile. Combined with its lightweight body and simple and reliable foot pressure mode, it can effectively improve your welding efficiency and quality for special workpieces, making "inaccurate welding and weak welding" a thing of the past.
|
Models/Item
|
DN-35 | DN-25 | DN-16 | DN-10 |
| Rated Power at 50% | 35KVA | 25KVA | 16KVA | 10KVA |
| Rated Primary Power | 380V | 380V | 380V | 380V |
| Rated Primary Current | 92A | 66A | 42.1A | 26.3A |
| Rated Duty Cycle | 10% | 10% | 10% | 10% |
| Secondary Unload Voltage | 2.6～4.2V | 2.3～3.55V | 1.98～3.01V | 1.65～2.4V |
| Adjustment Rated | 4 | 4 | 4 | 4 |
| Welding Time Adjustment | 0～9.99s |
0～9.99s
|
0～9.99s | 0～9.99s |
| Arms Length | 280mm | 280mm | 280mm | 260mm |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | 1.5+1.5mm |
| Cooling Ways |
Main Transformer: Air air cooling Electrode: Water cooling
|
|||
Features:
1)Adopt a lever-petal type spring pressure structure, easy to operate and maintain
2) Adjustable welding time and good welding repeatability.
3)Widely used in automobile, aviation, construction, machinery, metal products, electrical switches and so on.
4)Adopt SCR contactless switching circuit, so it can turn off circuit quickly and reliably.
5)Widely used for welding of low carbon steel, wire, stainless steel plate etc.
General Structures:
Customized Service:
Standard Type: general structures with pointed electrode, can weld welding wire crafts, daily hardware, furniture lighting, box and sheet metal parts.
Application:
Please note: the welding machine can be custom-made according to your requirements.
