| الاسم التجاري: | Xingweihan |
| رقم الطراز: | D(N)B--100，D(N)B--160, D(N)B--200, D(N)B--250 |
| الـ MOQ: | 1 |
| السعر: | USD20000-USD25000 |
| شروط الدفع: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| القدرة على التوريد: | 50 sets/month |

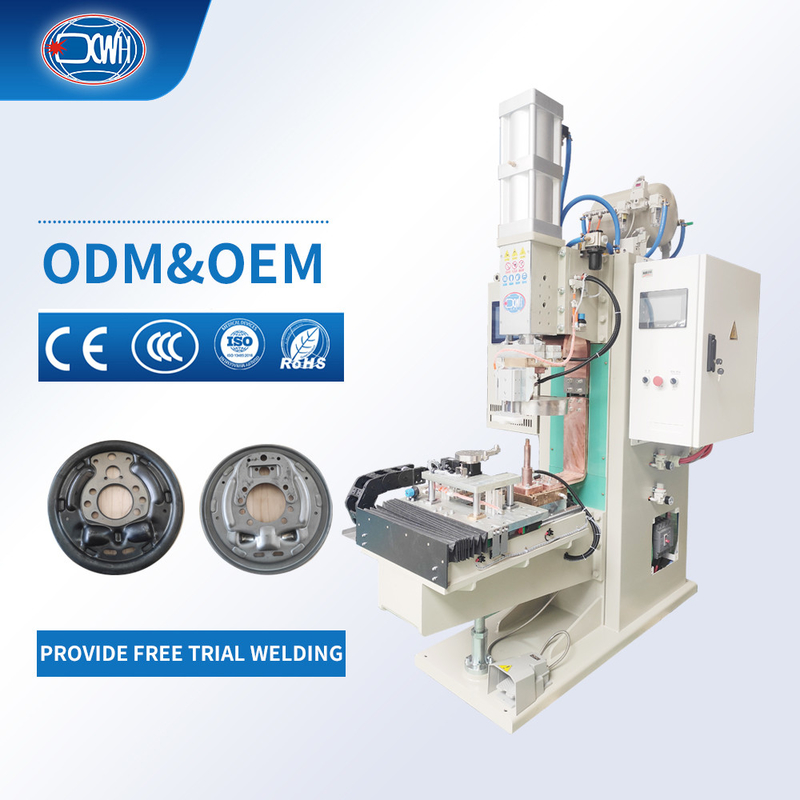

Spot Welder Carbon Steel Car Brake Base Plate Projection Welding Machine Price
Product Introduction:
The automatic spot welding machine for carbon steel automotive brake bottom plate is an intelligent welding equipment designed specifically for automotive brake system components. It is mainly used for spot welding and projection welding of carbon steel (such as Q235, SPHC, etc.) brake bottom plates. This equipment adopts advanced intermediate frequency inverter technology, combined with an automation control system, to achieve high-precision and high-efficiency welding, ensuring a firm connection between the brake base plate and the connecting parts (such as nuts, bolts, brackets, etc.), meeting the strict requirements of the automotive industry for safety components.
Features:
Technical Parameters:
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
General Structures:
Detailed Images:
Dual Cabinet Configuration: In addition to the conventional welding controller, the welding system is also equipped with an electrical control cabinet, which enables safer, more efficient, and intelligent operation, especially suitable for industrial scale large-scale or high-precision welding tasks.
Fully Automatic Welding: High compatibility, with 3 types of workpieces corresponding to 3 types of fixtures. Simply replace the positioning component to achieve model change. Fully automatic welding, automatically moving the point position to complete the welding.
Gas Storage Tanks: The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
Waterway Components: All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

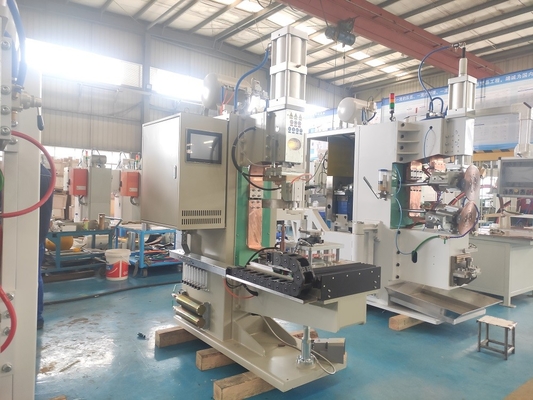

Scene Images:
Application:
FAQ:
