| الاسم التجاري: | Xingweihan |
| رقم الطراز: | XWH-1500, XWH-2000, XWH-3000 |
| الـ MOQ: | 1 |
| السعر: | USD2500-USD6000 |
| شروط الدفع: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| القدرة على التوريد: | 50 sets/month |

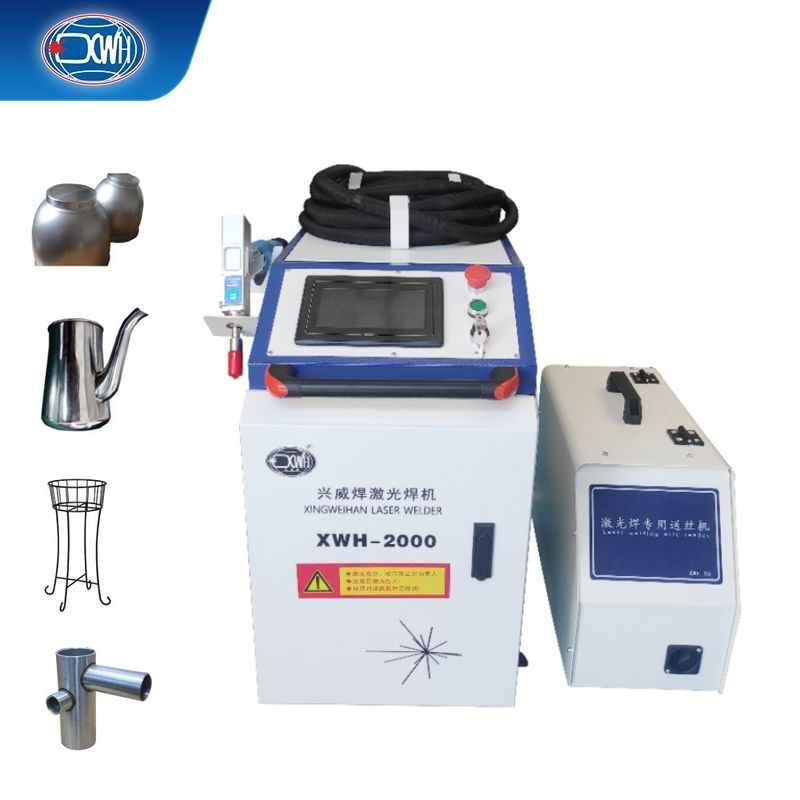

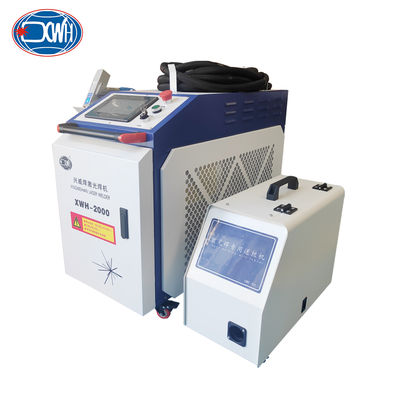

This handheld laser welding machine is an industrial masterpiece featuring ergonomic design with comfortable grip for long-term operation without fatigue. The precisely calculated center of gravity ensures stable and effortless handling. With its sleek metallic finish and professional aesthetic, it combines functionality with style. The intelligent OLED display provides clear parameter visualization and intuitive interaction. Every button and interface is carefully arranged, reflecting the perfect balance between form and function.
| Name | Handheld laser welding machine |
|---|---|
| Model | XWH-1500 /XWH-2000 | XWH-3000 |
| Power Supply | 220V + 10%, 50Hz; Rated current: < 14A | 380V±5%, 50Hz, Rated current: ≤25A |
| Environmental Requirements | Temperature 5-40℃; Humidity 10-90% |
| Cooling Method | Water Cooling (dual temperature and dual control) |
| Output Power Instability | ≤±2% (24-hour continuous operation) |
| Utilization Rate | ≤99.5% |
| Laser Wavelength | 1080nm |
| Optical Fiber | 50um 10m |
| Beam Output | 1 Beam |
| Modulation Frequency | 20KHz |
| Dimensions | 900*430*710mm |
| Weight | 87kg |
This four-in-one handheld laser welding machine combines welding, cleaning, cutting, and weld cleaning functions for maximum flexibility in industrial applications:
Connects various metal materials with precise, secure welds using high-energy density laser beams.
Effectively removes welding residues to ensure joint cleanliness and improve weld quality.
Enables precise material cutting, expanding the machine's application range beyond welding.
Ensures weld cleanliness to improve joint strength and durability.
