| الاسم التجاري: | XWH |
| رقم الطراز: | D (N) B--100 ， D (N) B--160 ، D (N) B--200 ، D (N) B--250 |
| الـ MOQ: | 1 |
| السعر: | USD2500-USD4000 |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام |
| القدرة على التوريد: | 50 مجموعة/شهر |

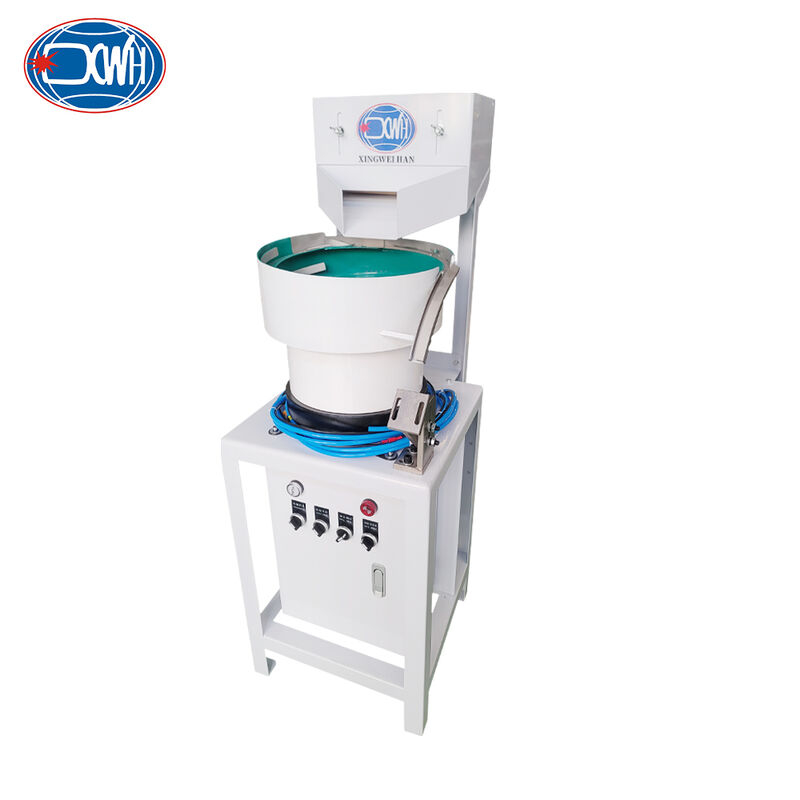

Vibratory Parts Automatic Brass Square Weld Nut Rivet Screw Conveyor Feeder
Product Introduction:
Nut conveyor belongs to a typical "cost reduction and efficiency improvement" type of equipment. The economic benefit analysis mainly covers: ① direct labor cost savings (one person can operate multiple devices or supervise multiple production lines); ② Efficiency improvement benefits (shortened production line pace, increased production capacity); ③ Quality cost reduction (significantly reducing rework, repairs, and customer complaints caused by fastening issues); ④ Management cost optimization (reducing reliance on skilled workers and training costs).
Features:
1.Realize millisecond level precise delivery: relying on compressed air power, the nut can be instantly blown to the designated workstation through the conveying pipeline. This ultra high speed conveying capacity can effectively break through the production bottleneck of high-speed assembly lines and bring a qualitative leap to overall assembly efficiency.
2. Adopting an extremely simplified design concept: its core structure only includes an automatic sorting unit for the vibration plate and a high-pressure blowing unit, with very few mechanical moving parts. This design brings core advantages: the system runs more reliably and stably, and the failure rate is significantly reduced. Daily maintenance work has become exceptionally simple as a result, without the need for frequent mechanical adjustments, only focusing on air source filtration and track cleaning.
3. It is one of the most cost-effective choices for achieving automated conveying: not only is the initial investment affordable, but the subsequent maintenance costs are also well controlled. Its core appeal lies in its extremely short investment payback period, which provides an ideal entry point for many enterprises seeking automation transformation but considering costs, with extremely low risk and rapid returns.
4. Excellent spatial layout adaptability: The direction of its conveying pipeline can be customized according to the three-dimensional space of the production line equipment and workstations, with obstacle avoidance capability, which can effectively compensate for the lack of accessibility of rigid automation (such as robotic arms) and achieve precise transportation to specific complex points.
Technical Parameters:
|
Power Supply
|
AC220V, 50Hz / 60Hz; Max 250 - 400VA
|
|

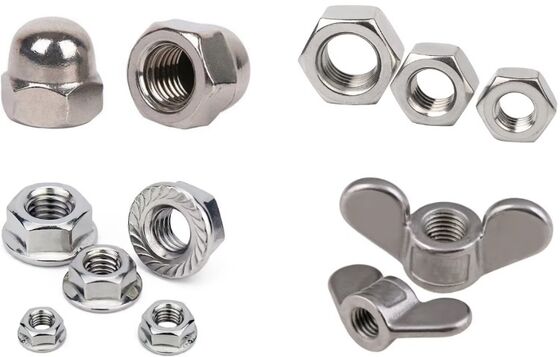

Nut Shapes
|
Square, round. Hexagon, T, dome, with cover, with rib, collar etc.
|
|
Air Pressure
|
0.25 - 0.4MPa
|
|
Sizes
|
M4 - M12, 7/16
|
|
Bowl Size
|
φ260mm, φ350mm
|
|
Hopper Capacity
|
9L (10,000 pcs for M6 nut)
|
|
Supply Capacity
|
40 - 60pcs/min
|
|
Supply Chute Length
|
2m
|
|
Angle
|
0° - 90°
|
|
Weight
|
50kg
|

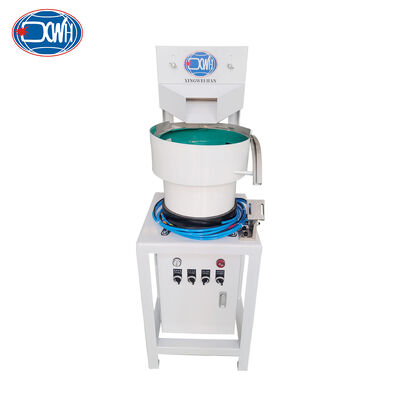

General Structures:
Detailed Images:
Transportation Pipeline: It is usually a flexible hose made of polyurethane or nylon material, with quick couplings at both ends. As an exclusive track connecting the host and the workstation. After the separated individual nuts enter the pipeline, they will be pushed by compressed air (blowing type) or mechanical mechanism (pushing type) that opens instantly, flying at high speed inside the pipeline and reaching the feeding nozzle at the end. Its flexibility ensures that it can bend freely with the robotic arm or moving mechanism.
Control System: This device has a highly intelligent 'brain' - typically composed of a programmable logic controller (PLC) or embedded microprocessor. As the command center of the entire system, it continuously receives sensing signals and superior instructions from all directions, and calmly and decisively issues commands, accurately commanding every rise and fall of the vibrating plate, subtle changes in the vertical vibration speed, precise rhythm of the separation mechanism, and instantaneous opening and closing of the air valve. It is also an alert sentinel, capable of diagnosing common faults such as material shortages, blockages, and process timeouts in real time, and issuing timely warnings through prominent sound and light alarms.

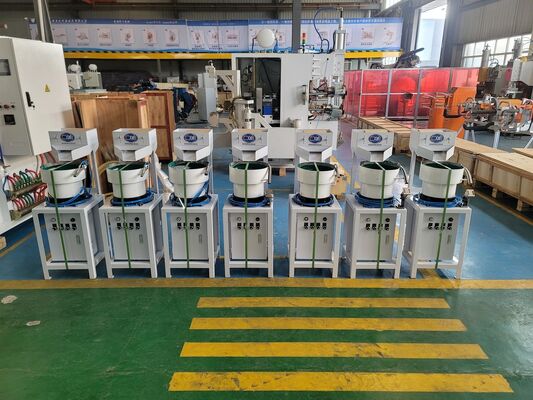

Scene Images:
Application:
Supporting Point Projection Welding Machines:
FAQ:
